Choosing the right steel for an application is crucial for ensuring durability, performance, and cost-effectiveness. Galvanized steel and stainless steel are two widely used materials, each offering distinct advantages. Galvanized steel provides excellent corrosion resistance at a lower cost, while stainless steel excels in strength and resistance to extreme conditions. This article compares their properties, uses, and the pros and cons of each to help you select the best material for your needs.
What is Galvanized Steel?
Galvanized steel is steel that has been coated in zinc to make it more resistant to corrosion:
How it's made
Steel is dipped into molten zinc, which bonds to the steel and becomes part of its chemical composition. The most common method for galvanizing is called hot-dip galvanizing, where steel coils are run through a bath of molten zinc.
Uses
Galvanized steel is used in many industries, including agriculture, solar, automotive, and construction.

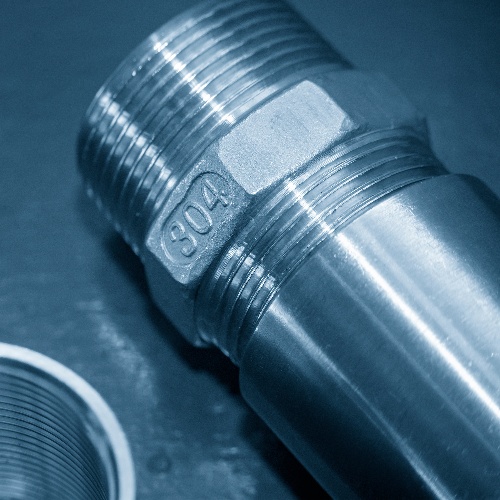

What is Stainless Steel?
Stainless steel, also known as inox, corrosion-resistant steel (CRES), and rustless steel, is an alloy of iron that is resistant to rusting and corrosion. It contains iron with chromium and other elements such as molybdenum, carbon, nickel and nitrogen depending on its specific use and cost. Stainless steel's resistance to corrosion results from the 10.5%, or more, chromium content which forms a passive film that can protect the material and self-heal in the presence of oxygen.
The alloy's properties, such as luster and resistance to corrosion, are useful in many applications. Stainless steel can be rolled into sheets, plates, bars, wire, and tubing. These can be used in cookware, cutlery, surgical instruments, major appliances, vehicles, construction material in large buildings, industrial equipment (e.g., in paper mills, chemical plants, water treatment), and storage tanks and tankers for chemicals and food products. Some grades are also suitable for forging and casting.
Key Differences Between Galvanized Steel and Stainless Steel
Corrosion Resistance
Galvanized steel vs stainless steel differ significantly in corrosion resistance. Galvanized steel is coated with zinc, which protects it from rust but can degrade over time, especially in harsh environments. Stainless steel, on the other hand, forms a passive oxide layer that provides superior rust resistance, making it more suitable for extreme conditions like marine or chemical environments.
Strength and Durability
Stainless steel excels in strength and durability, able to withstand high stress, load, and wear without losing integrity. Galvanized steel, while strong, is more prone to dents and structural failure under heavy loads, especially in thinner gauges.
Aesthetic Appeal
Stainless steel offers a sleek, modern finish, often with a shiny or brushed appearance, ideal for high-end designs. Galvanized steel has a more industrial look, with a matte gray finish that may not suit decorative applications.
Galvanized steel is significantly more affordable than stainless steel, making it a cost-effective option for projects where strength and durability are still important, but budget is a concern.
Maintenance
While galvanized steel requires occasional re-coating to maintain its corrosion resistance, stainless steel is low maintenance and can last longer without degradation, making it ideal for long-term use with minimal care.
Pros and Cons of Galvanized Steel
Disadvantages:
Galvanized steel is also not as smooth as many stainless steel finishes and gets coarser over time. This means that clean-up requirements will increase over time along with the change in surface texture.
Advantages:
A galvanized coating provides a physical barrier which is metallurgically bonded, and prevents the underlying steel from being exposed to atmospheric conditions. This coating is highly durable and has an adhesive strength of up to seven times that of organic paint coatings.
Pros and Cons of Stainless Steel
Pro: It's Resistant to Corrosion.
Pro: It's Easy to Maintain and Clean.
Pro: It's Durable and Has a Long Lifespan.
Pro: It's Versatile and Can Be Used for Many Things.
Con: Cost ,it Can Be Expensive.
Con: It's Susceptible to Dents and Scratches.
When to Use Galvanized Steel vs. Stainless Steel
Best Use Cases for Galvanized Steel: Outdoor projects, budget-friendly solutions.
Best Use Cases for Stainless Steel: Medical equipment, food processing, high-end designs.
Environmental Impact: Galvanized Steel vs. Stainless Steel
When considering the environmental impact of galvanized steel and the sustainability of stainless steel, both materials offer distinct advantages. Galvanized steel is recyclable, but its zinc coating can limit reusability in some cases. Stainless steel, however, is 100% recyclable and has a longer lifespan, reducing waste over time. The production process for stainless steel is energy-intensive, but its durability and recyclability make it an eco-friendly option in the long run. Both materials can contribute to eco-friendly steel options when properly managed.
Stainless steel and galvanized steel each serve unique roles in construction and manufacturing. While stainless steel offers superior rust resistance and durability, galvanized steel remains a cost-effective option for environments with moderate exposure to moisture. The best choice ultimately depends on your project’s environmental conditions, budget, and aesthetic needs.Choosing the right material can save you time, maintenance costs, and potential replacements. Consider each material’s benefits and limitations carefully or consult with a materials expert if you’re still unsure.
